All DECKED products take 7-14 business days to ship. DECKED products do not ship 2-day or out of the country of the United States.
The most durable bed slide in the game. Options for 70% or 100% extension, and up to 2200 lb payload. Compatible with DECKED Drawer Systems.
LOAD IT UP AND GET TO WORK
- Never crawl into your truck bed or van again
- Multi-position cargo stops
- Industrial-grade American steel and aluminum
- Tray uses resin coated marine-grade plywood
ROLL IT OUT AND GET ROLLIN'
- Ballsy ball bearings for buttery-smooth action
- Easily operated with one hand (& a donut)
- Auto-stop handle prevents runaway cargo moments
- Installation so quick and simple, monkeys can do it
YOU WANT OPTIONS? WE GOT OPTIONS.
- 1,000 lb, 1,500 lb, 2,200 lb payload options
- Choose 70% or 100% extension
- High Sides and additional tie downs available
- Fits on Full-size or Midsize Drawer Systems

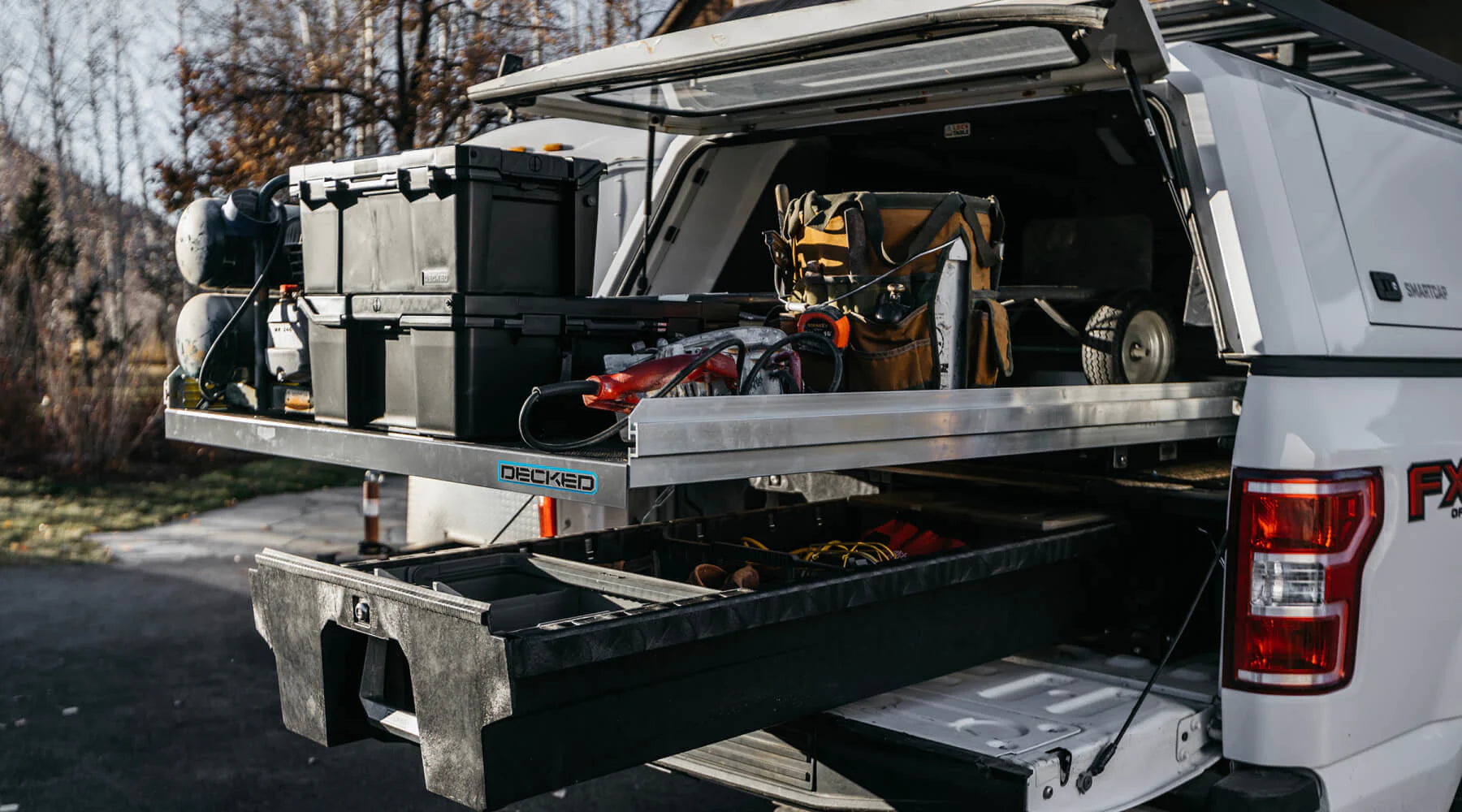

PLAYS NICE WITH DRAWER SYSTEMS
- Bolts directly to Drawer Systems for the ultimate setup
- No-drill mounting for new Drawer Systems
- Drawers take 1,000 lb payload and 70% extension only
CARGOGLIDE FOR FORD - MAVERICK / 70% / 1,000 LBS
SPECS:
-
Weight: 123 lb.
-
Payload: 1000 lb.
SYSTEM DIMENSIONS:
-
A (Width): 41.75 in.
-
B (Length): 52 in.
-
C (Height): 7 in.
TRAY DIMENSIONS:
-
Tray Width: 41 in.
-
Tray Length: 51 in.
-
Tray Height: 4 in.
-
Extension: 70%.
CARGOGLIDE FOR FORD - MAVERICK / 100% / 1,000 LBS
SPECS:
-
Weight: 196 lb.
-
Payload: 1000 lb.
SYSTEM DIMENSIONS:
-
A (Width): 41.75 in.
-
B (Length): 52 in.
-
C (Height): 13.5 in.
TRAY DIMENSIONS:
-
Tray Width: 41 in.
-
Tray Length: 51 in.
-
Tray Height: 5.5 in.
-
Extension: 100%.
CARGOGLIDE MATERIALS:
- Powder coated USA steel frame
- Industrial 0.75” Marine Plywood deck, Coated with a thermoplastic top sheet
- Aluminum sidewalls
- 14 double roller bearings mid frame 3203zz
- 12 side thrust bearings mid frame 6201
- 2 Cam follower bearings bottom frame (tailgate end) 1.25" CYR
TAILGATE CLEARANCE: Some tailgates don't lay flat when open, which will cause binding when extending the CargoGlide tray. The highest point on your tailgate when open must be less than 3/4" above your truck bed floor to ensure compatibility. Before drilling into your bed, test the fit according to our install instructions. We offer easy-to-install spacer/riser kits or shoulder bolts for the current GMC/Chevy trucks known to have this issue.

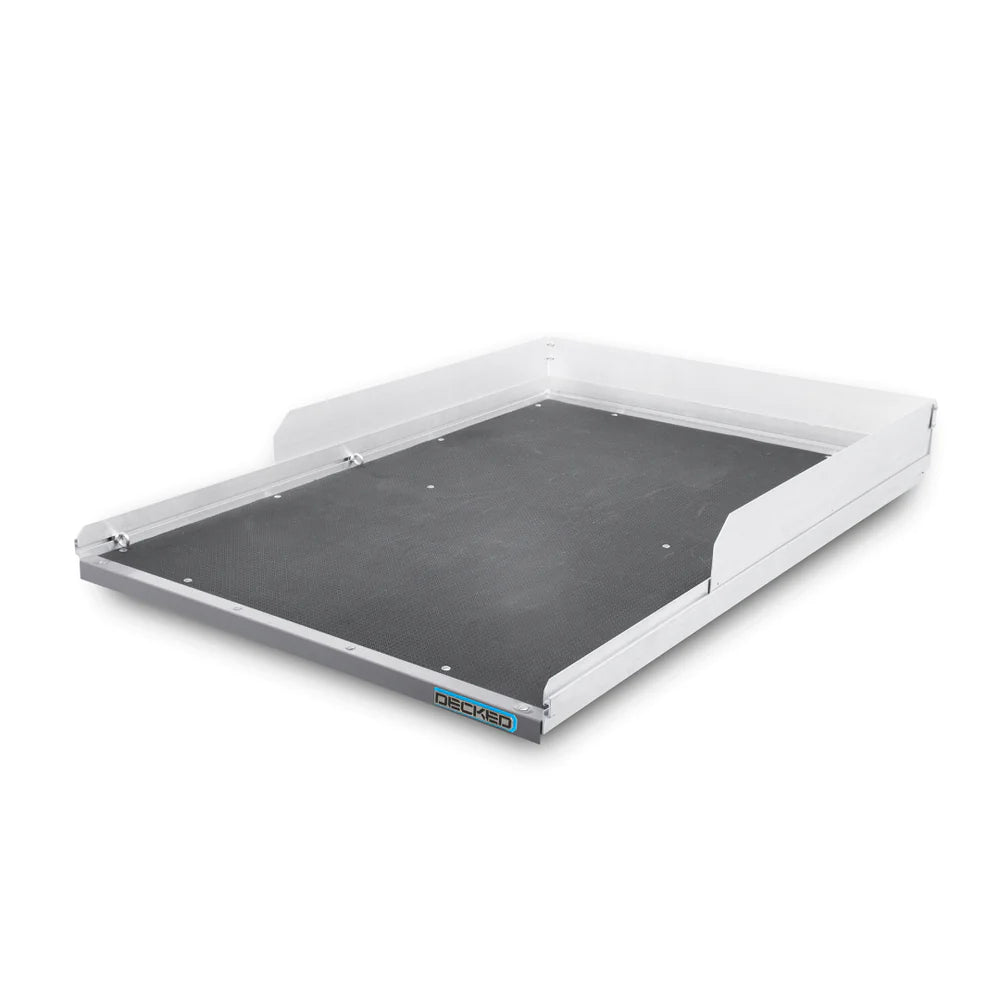

CARGOGLIDE HIGH SIDES:
CargoGlide High Sides come included free of charge with any 100% extension CargoGlide.
